Product Description
The width of clear span tent for sale is from 10m to 40m. With a modular design, the bay distance can be extended to 3 - 5 meters. The material used in the overall frame of the tent is hard extruded aluminum alloy T6061/T6, firm and stable, ensuring the durability of the tent. The roof of the clear span tent is covered with PVC or glass. Cover the roof with different materials for different events. PVC roof is waterproof and meets industry standard flame retardant DIN 4102 B1 M2. The sidewall can also be PVC or glass depending on the needs of your project. The clear span tent can be used as a temporary or permanent building, easy to set up, without the need for heavy equipment, and several workers can quickly complete the assemble or disassembly.

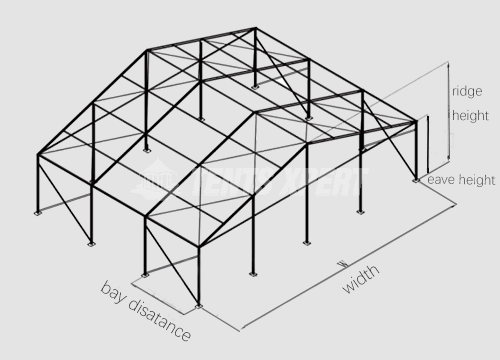

Span Width m / ft | Eave Height m / ft | Ridge Height m / ft | Bay Distance m / ft |
5 / 16.4 | 3 / 9.84 | 3.517 / 11.54 | 3 / 9.84 |
8 / 26.25 | 3 / 9.84 | 4.32 / 14.17 | 3 / 9.84 |
10 / 32.8 | 3 / 9.84 | 4.64 / 15.23 | 3 / 9.84 |
10 / 32.8 | 4 / 13.12 | 5.63 / 18.47 | 5 / 16.4 |
15 / 49.21 | 4 / 13.12 | 6.44 / 21.13 | 5 / 16.4 |
15 / 49.21 | 5 / 16.4 | 7.44 / 24.41 | 5 / 16.4 |
15 / 49.21 | 6 / 19.69 | 8.44 / 27.69 | 5 / 16.4 |
20 / 65.62 | 4 / 13.12 | 7.16 / 23.49 | 5 / 16.4 |
20 / 65.62 | 5 / 16.4 | 8.16 / 26.77 | 5 / 16.4 |
20 / 65.62 | 6 / 19.69 | 9.16 / 30.05 | 5 / 16.4 |
30 / 98.43 | 4 / 13.12 | 8.84 / 29 | 5 / 16.4 |
30 / 98.43 | 5 / 16.4 | 10.84 / 35.56 | 5 / 16.4 |
30 / 98.43 | 6 / 19.69 | 12.84 / 42.13 | 5 / 16.4 |
40 / 131.23 | 4 / 13.12 | 10.41 / 34.15 | 5 / 16.4 |
40 / 131.23 | 5 / 16.4 | 12.41 / 40.72 | 5 / 16.4 |
40 / 131.23 | 6 / 19.69 | 14.41 / 47.28 | 5 / 16.4 |
☆ Hard extruded aluminum alloy T6061/T6 (15~17HW)
☆ Easy to assemble and disassemble
☆ Few components and less space for storage
☆ Be installed without heavy machinery
☆ Compatible with other accessories
☆ 15-20 years lifespan

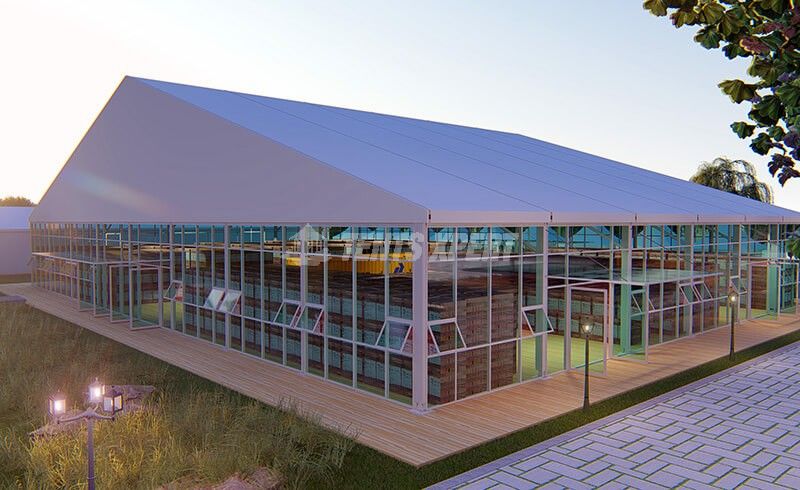

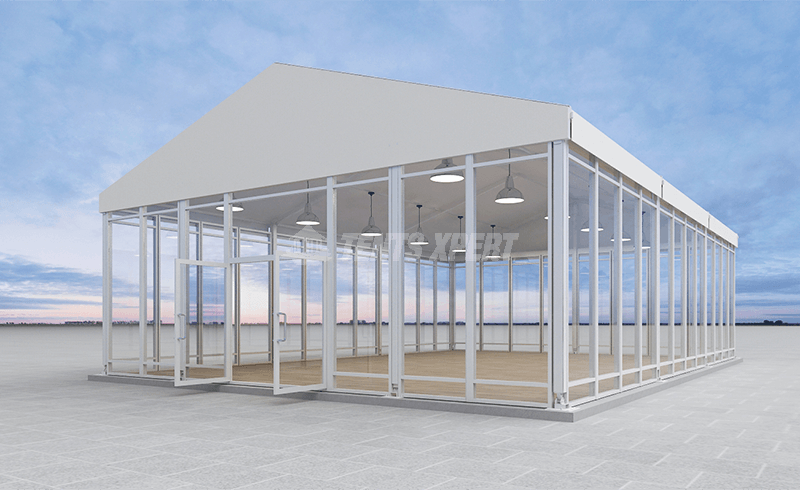

PVC Roof or glass roof
☆ Specification: 650~1100g/m2
☆ Flame Retardant: DIN 4102 B1 M2
☆ Wind Load: 88 km/h
☆ Snow Load: 35 kg/m2
☆ High strength and strong tension
☆ anti-mildew and anti-corrosion
☆ 10-15 years lifespan

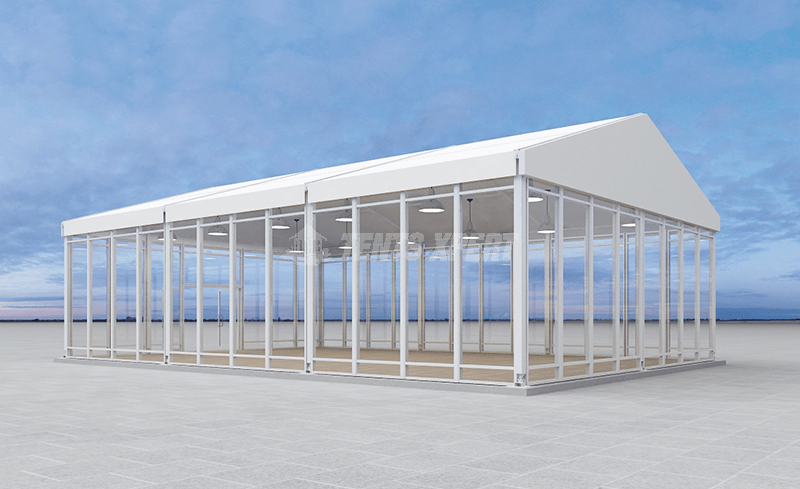

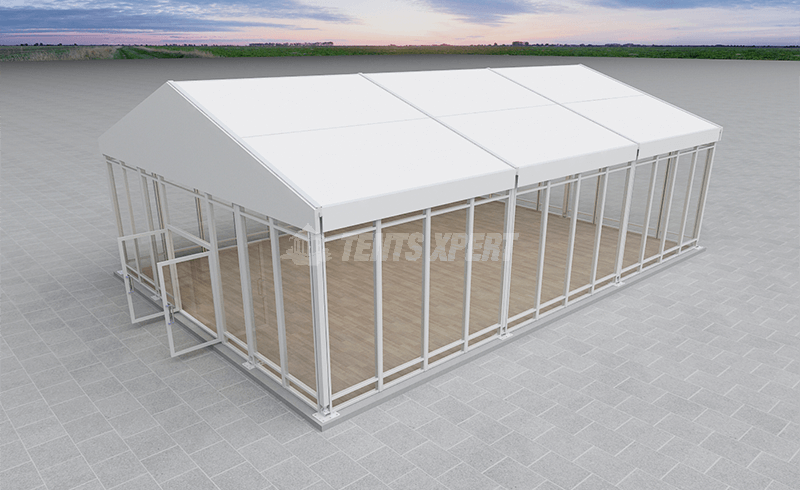

PVC sidewall or glass sidewall

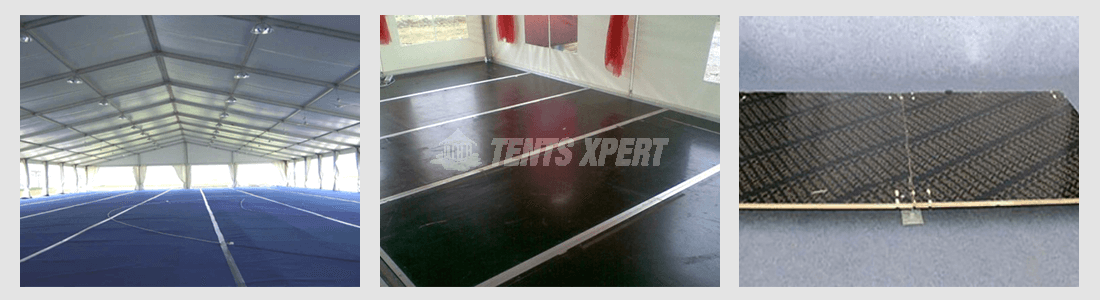

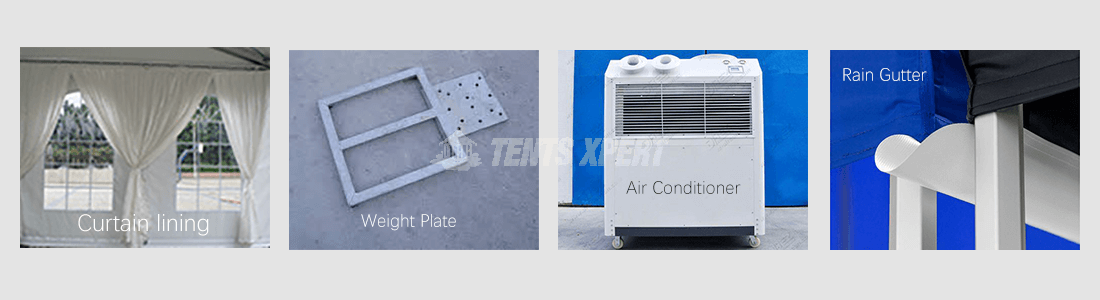

Flooring System | Curtain Lining | Weight Plate | Air Conditioning | Rain Gutter

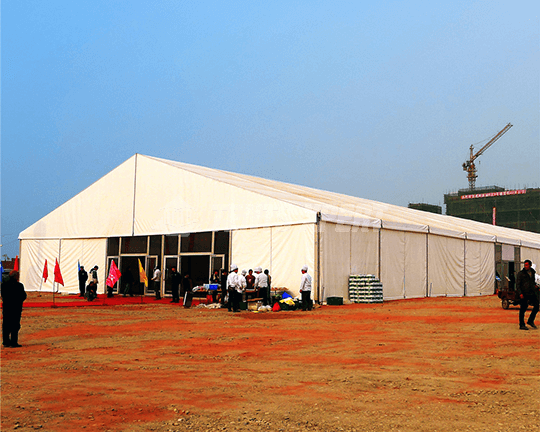

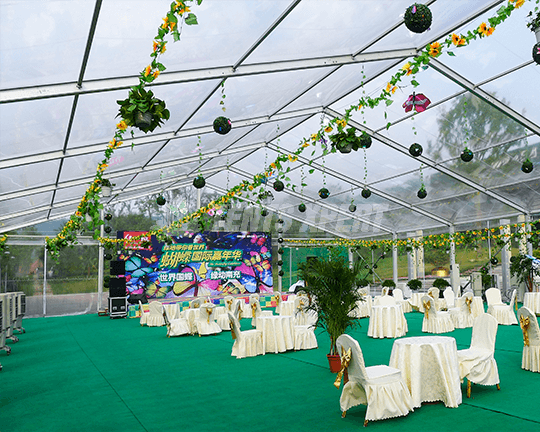

√ Outdoor party tent. Glass roof tent looks beautiful against the party lights.

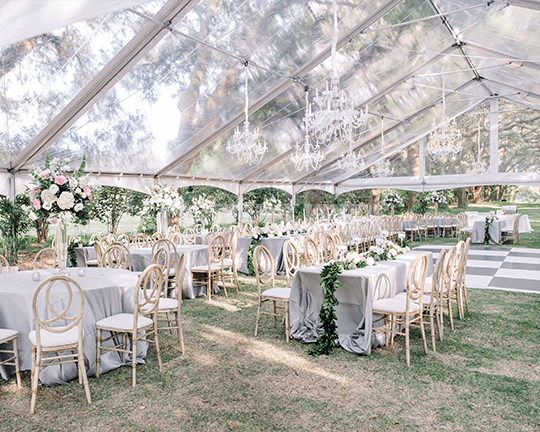

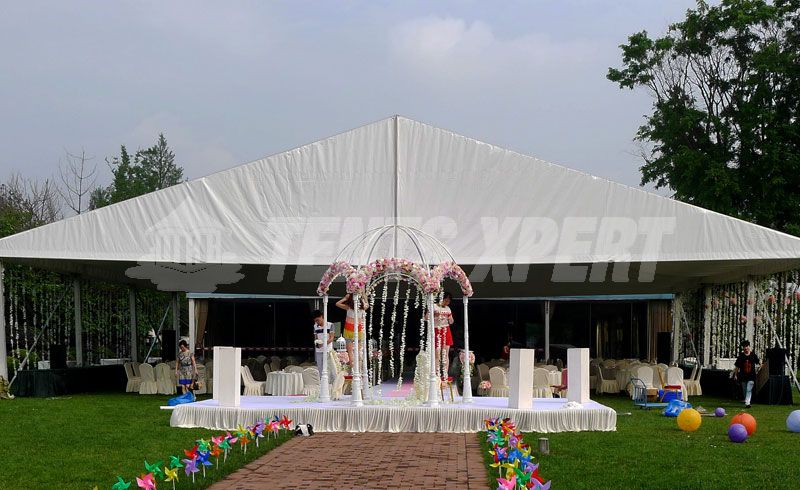

√ Lawn wedding tent. The sun through the glass roof to give a warm blessing to a new couple.

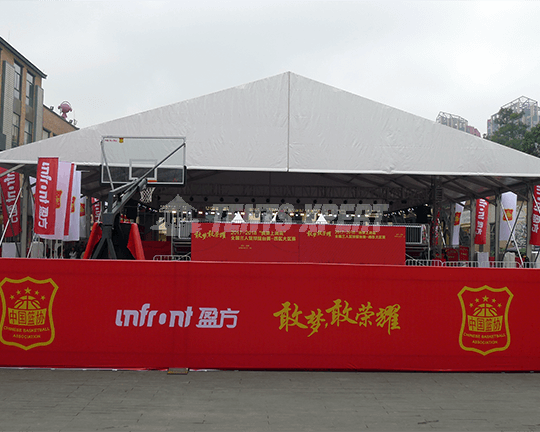

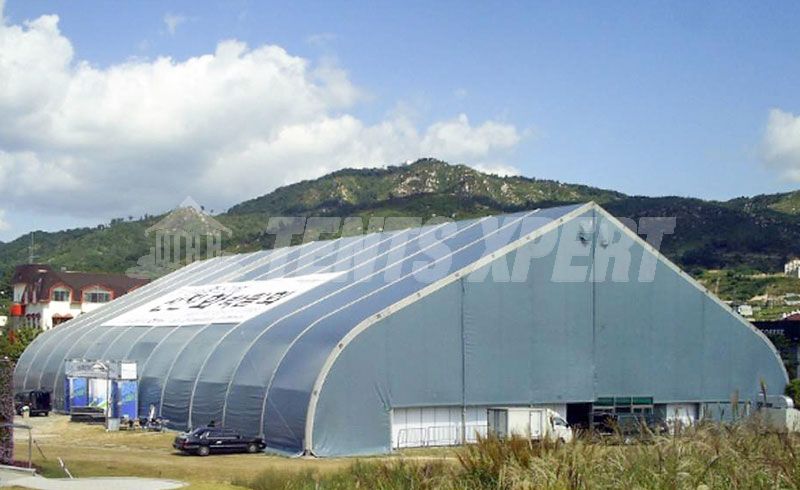

√ Temporary sports event tents. Normally playing the game without being affected by the weather. Airy and well lit.

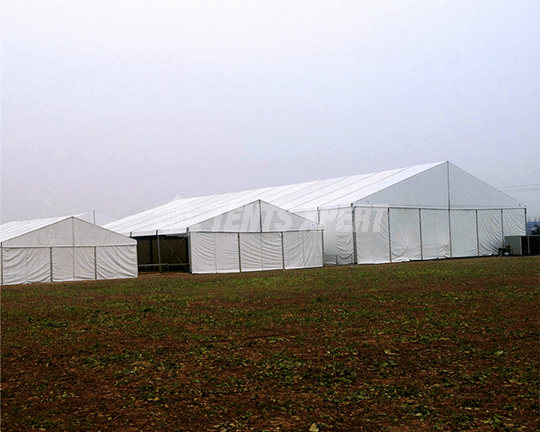

√ Agricultural product storage warehouse. Well ventilated, and PVC roof effectively blocks light and rain.

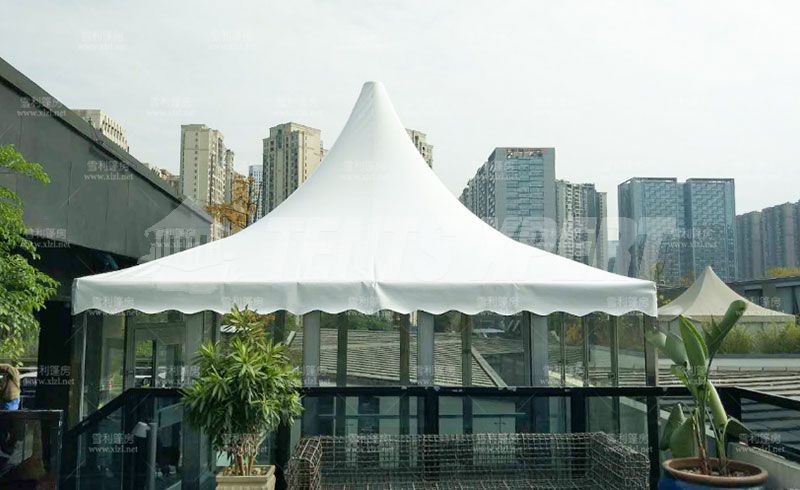

√ Compatible with buildings or pagoda tent.
